E7 Automatic Electrostatic Powder Coating Gun
Automatic version sharing the same control unit as the E7 manual gun, ideal for conveyor-line batch coating with a reciprocator. Control unit is reusable, keeping upgrade costs low.
View details →
V16 Automatic Electrostatic Powder Coating Gun V16
The high-end automatic gun of the V series and the gun head platform of the Kingkong F1 automatic version — usable standalone on automatic lines or combined with the F1 control cabinet.
Technical Specifications
| Model | V16 |
|---|---|
| Type | Automatic |
| Category | Electrostatic Powder Coating Gun |
| Input Voltage | AC 220V 50Hz |
| Power | — |
| Hopper | Powder feed system configured to line requirements |
| Suitable Workpieces | Automatic line batch coating, gun head platform of the F1 automatic version |
| Status | In Production |
Key Features
- High-end platform gun head: The V16 is the standard gun head of the Kingkong F1 automatic version, with technology proven on high-end lines.
- Two ways to use it: Pair with a V series control unit for standalone use on automatic lines, or combine with the Kingkong F1 control cabinet to form the F1 automatic version.
- Mature electrode needle system: Both round and flat nozzles carry electrode needles in a second-stage charging structure, delivering good charging on edges and grooves.
- Universal wear parts: Shares nozzles, powder hoses, and other wear parts with V series manual guns, keeping spare parts management simple.
Specifications
| Item | Parameter |
|---|---|
| Input voltage | AC 220V 50Hz |
| Output current | 0–100μA adjustable |
| Air consumption | ≤0.3m³/min |
| Nozzle options | Round, flat, bell-shaped, extension wand |
| Mounting | Reciprocator / fixed bracket |
For detailed specifications, refer to the latest product manual. Contact us for the full parameter sheet and F1 automatic version combination plans.
Typical Applications
Mid-to-high-end automatic coating lines; gun head supplements and spares for the Kingkong F1 automatic version; plant-wide solutions unifying manual and automatic guns on the V series platform.
FAQ
Q: Can the V16 automatic gun be purchased on its own? Yes. It can be used to build a line standalone or serve as an extension gun position for the F1 automatic version — contact us for a configuration list based on your line.
Want to Confirm This Model Fits Your Workpieces?
Provide workpiece dimensions, material and daily output — we deliver selection advice and a configuration list. Sample spray testing available.
Related Products
Top-960 Automatic Electrostatic Powder Coating Gun
Entry-level automatic gun with 0-90kV output, suited to automatic coating lines running mostly standard workpieces with occasional metallic powders or grooved parts.
View details →
E9 Automatic Electrostatic Powder Coating Gun
Automatic gun from the E series, suited to conveyor-line automatic coating of mostly standard workpieces, built on the same technical platform as the E series manual guns.
View details →

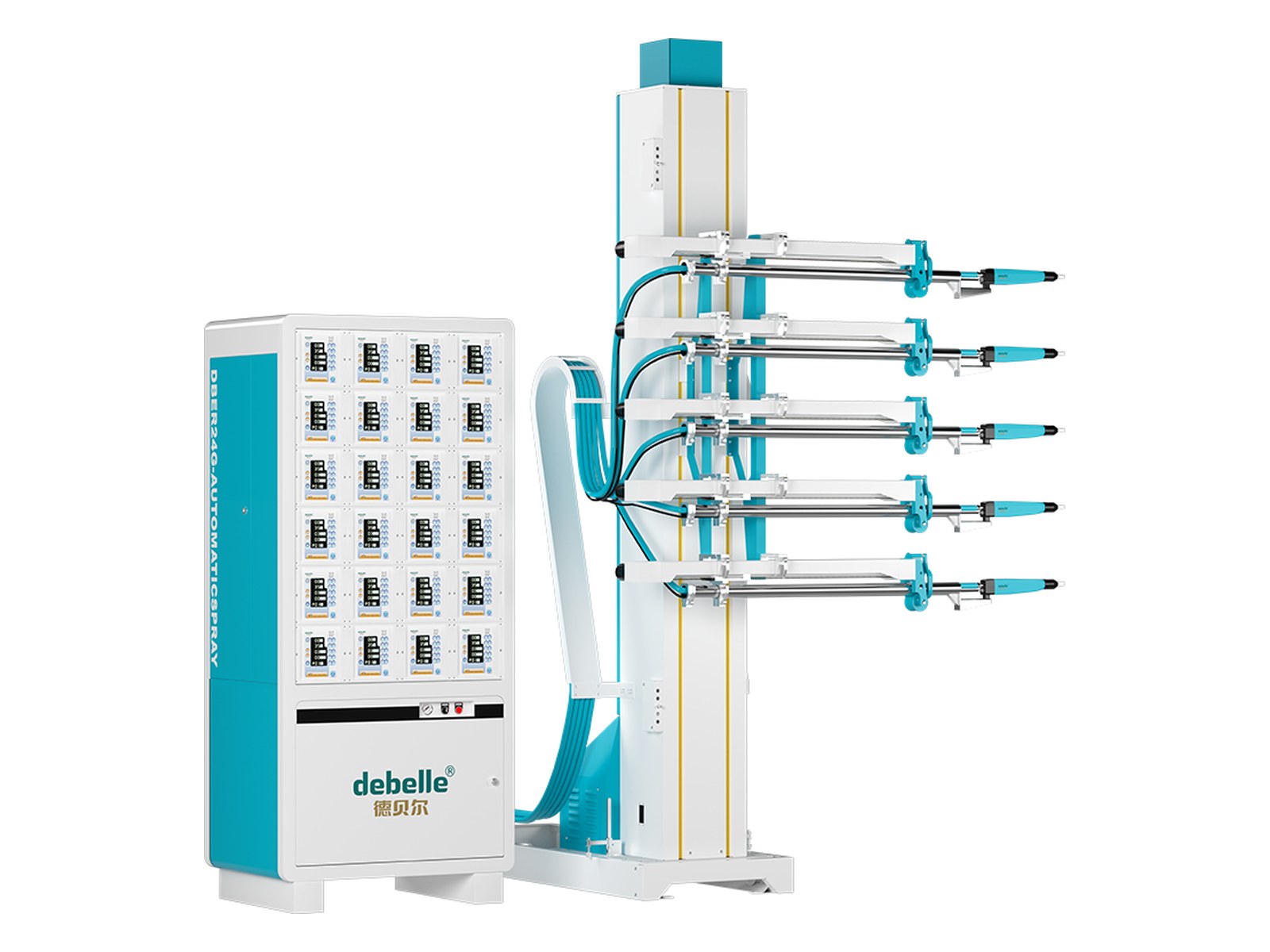

V11 Automatic Electrostatic Powder Coating Gun
CNC automatic gun with 0-95kV output and 29KHz high frequency, supporting program-based management and self-diagnosis, suited to automatic lines with multi-product rotation.
View details →
