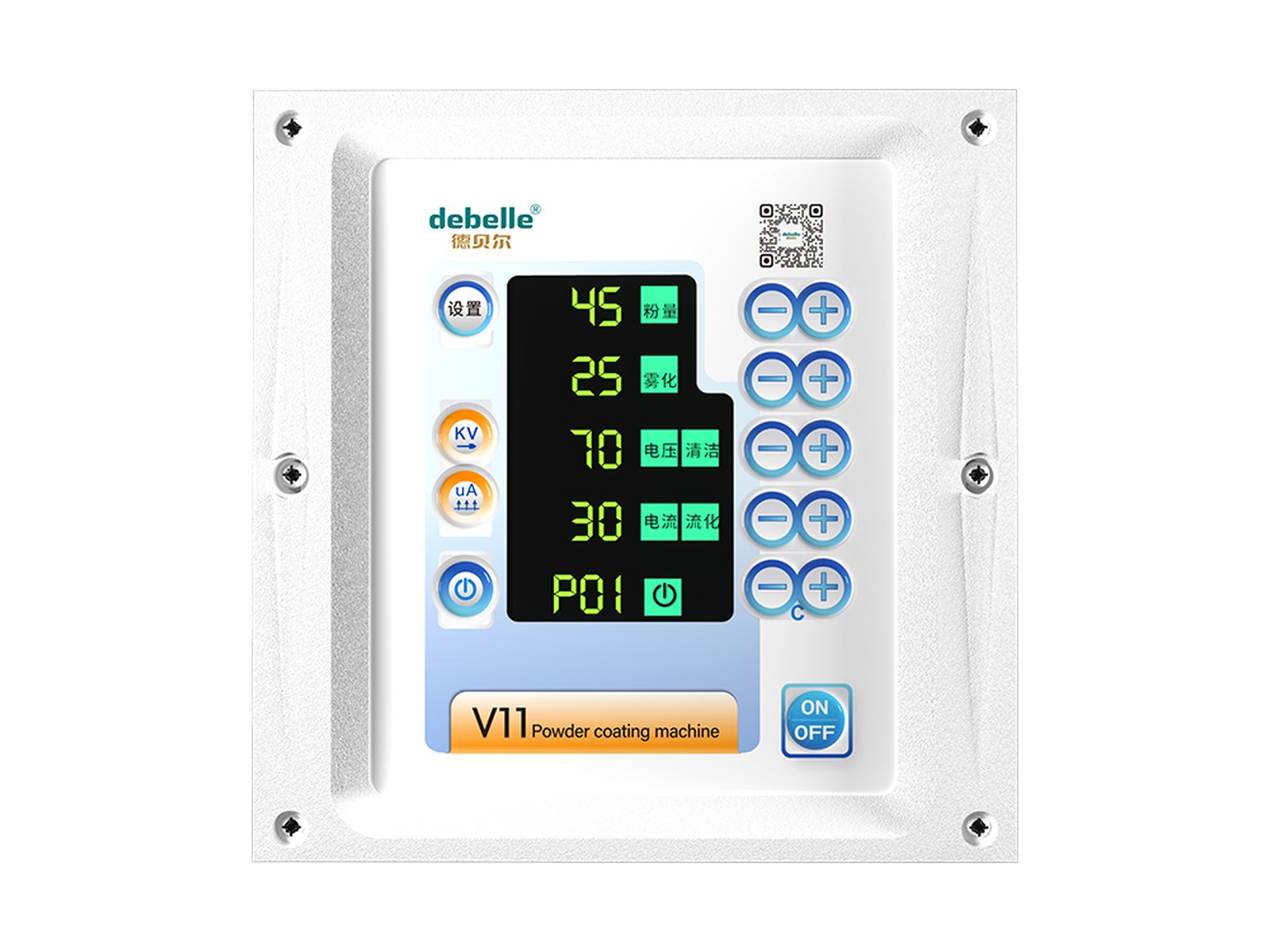

V11 Automatic Electrostatic Powder Coating Gun V11
CNC automatic gun with 0-95kV output and 29KHz high frequency, supporting program-based management and self-diagnosis, suited to automatic lines with multi-product rotation.
1 / 3Technical Specifications
| Model | V11 |
|---|---|
| Type | Automatic |
| Category | Electrostatic Powder Coating Gun |
| Input Voltage | AC 220V 50Hz / 0-95kV output |
| Power | 35W |
| Hopper | Powder feed system configured to line requirements |
| Suitable Workpieces | Automatic line batch coating, multi-product rotation |
| Status | In Production |
Key Features
- CNC parameter management: Process parameters are stored as programs on the automatic line — changeovers just load a program, without repeated trial spraying on site.
- 29KHz high-frequency electrostatics: Full powder charging delivers high first-pass transfer efficiency, directly reducing the proportion of reclaimed powder.
- Self-diagnosis: With many gun positions on an automatic line, fault codes let inspection workers quickly locate the problem gun.
- Modbus communication: Interfaces with the line PLC for chain-linked powder on/off control.
Specifications
| Item | Parameter |
|---|---|
| Input voltage | AC 220V 50Hz |
| Output voltage | 0–95kV |
| Output current | 0–100μA adjustable |
| Output power | 35W |
| Air consumption | ≤0.3m³/min |
| Powder output | 0–450g/min |
| High-voltage frequency | 29KHz |
| Display | Digital display |
| Communication | Modbus |
| Mounting | Reciprocator / fixed bracket |
Typical Applications
Automatic coating lines with multi-product rotation; digitalized workshops that need PLC/MES integration; the upgrade path from basic automatic guns to CNC.
FAQ

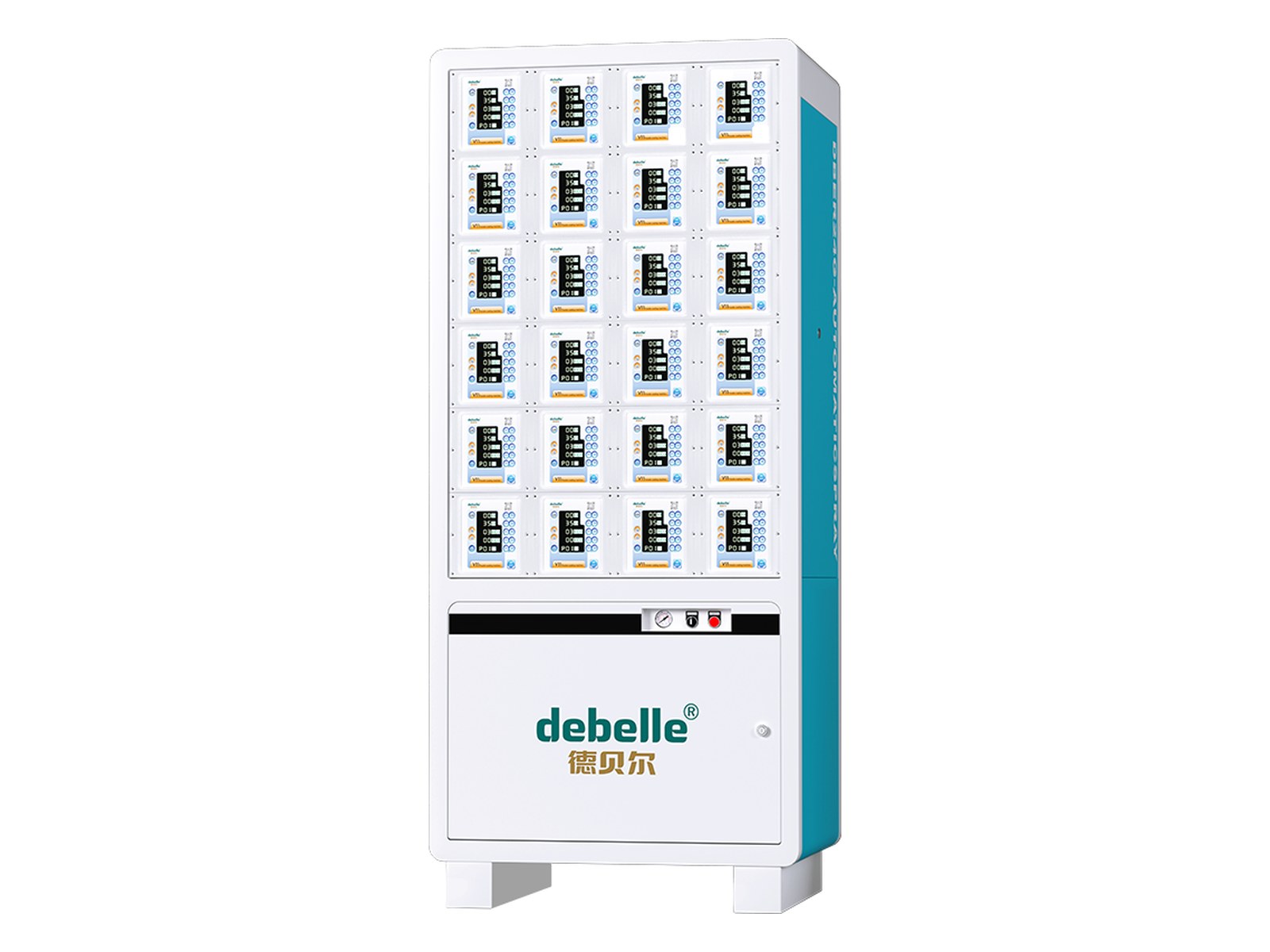

Q: One powder booth with a dozen guns — is that manageable? The V11 supports program-based management and self-diagnosis. If you want “one control unit managing all guns”, see the V12 automatic’s interlock control solution.
Want to Confirm This Model Fits Your Workpieces?
Provide workpiece dimensions, material and daily output — we deliver selection advice and a configuration list. Sample spray testing available.
