V12 Automatic Electrostatic Powder Coating Gun V12
CNC automatic flagship with one-touch gun purge, multi-gun interlock control, and cross-backup control units that keep production running — the core solution for large powder booth automatic lines.
1 / 3Technical Specifications
| Model | V12 |
|---|---|
| Type | Automatic |
| Category | Electrostatic Powder Coating Gun |
| Input Voltage | AC 220V 50Hz / 0-100kV output |
| Power | 35W |
| Hopper | Powder feed system configured to line requirements |
| Suitable Workpieces | Large powder booths with multi-gun interlock, continuous automatic production |
| Status | In Production |
Key Features
- One-touch gun purge: 9 automatic cleaning cycles per minute for the powder pump, powder hose, and electrode needle; after purging it returns to the main program automatically — faster color changes, shorter downtime.

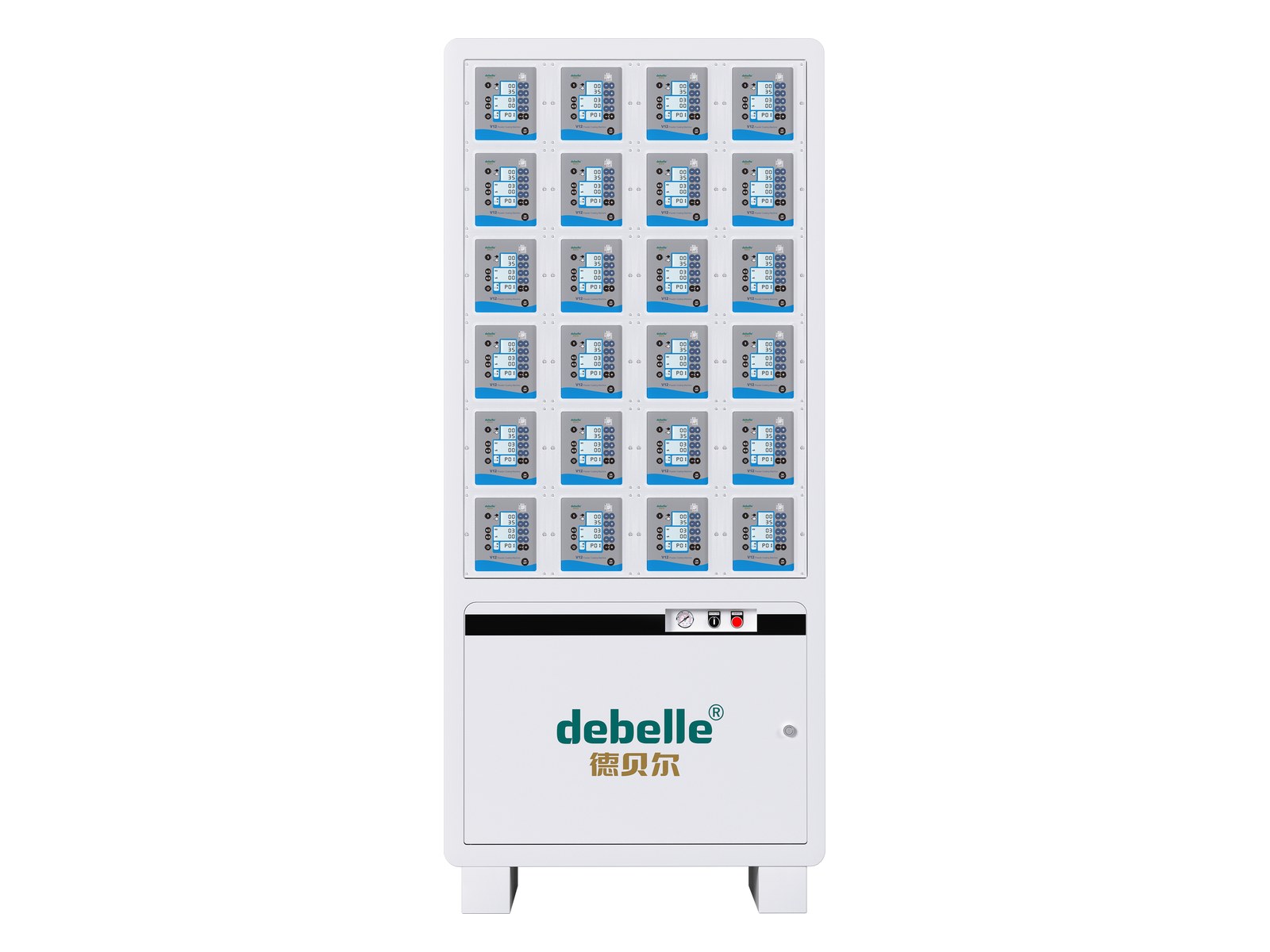

- Interlock control: One powder booth with 30 automatic gun sets — all powder output, atomization, and electrostatic settings are done on a single control unit, with the rest syncing automatically. Precise data, less operator work.
- No-stoppages design: Every control unit is universal — it can operate independently or take over any other control unit. If any control unit fails, the others take over directly and the line keeps running.
- 0-100kV + 29KHz: High output ceiling and high-frequency charging keep transfer efficiency stable on automatic lines.
- Optional operator split screen: The gun operating screen can be mounted close to the operator — no running back and forth, precise powder control that reduces powder consumption.
Specifications
| Item | Parameter |
|---|---|
| Input voltage | AC 220V 50Hz |
| Output voltage | 0–100kV |
| Output current | 0–100μA adjustable |
| Output power | 35W |
| Air consumption | ≤0.3m³/min |
| Powder output | 0–450g/min |
| High-voltage frequency | 29KHz |

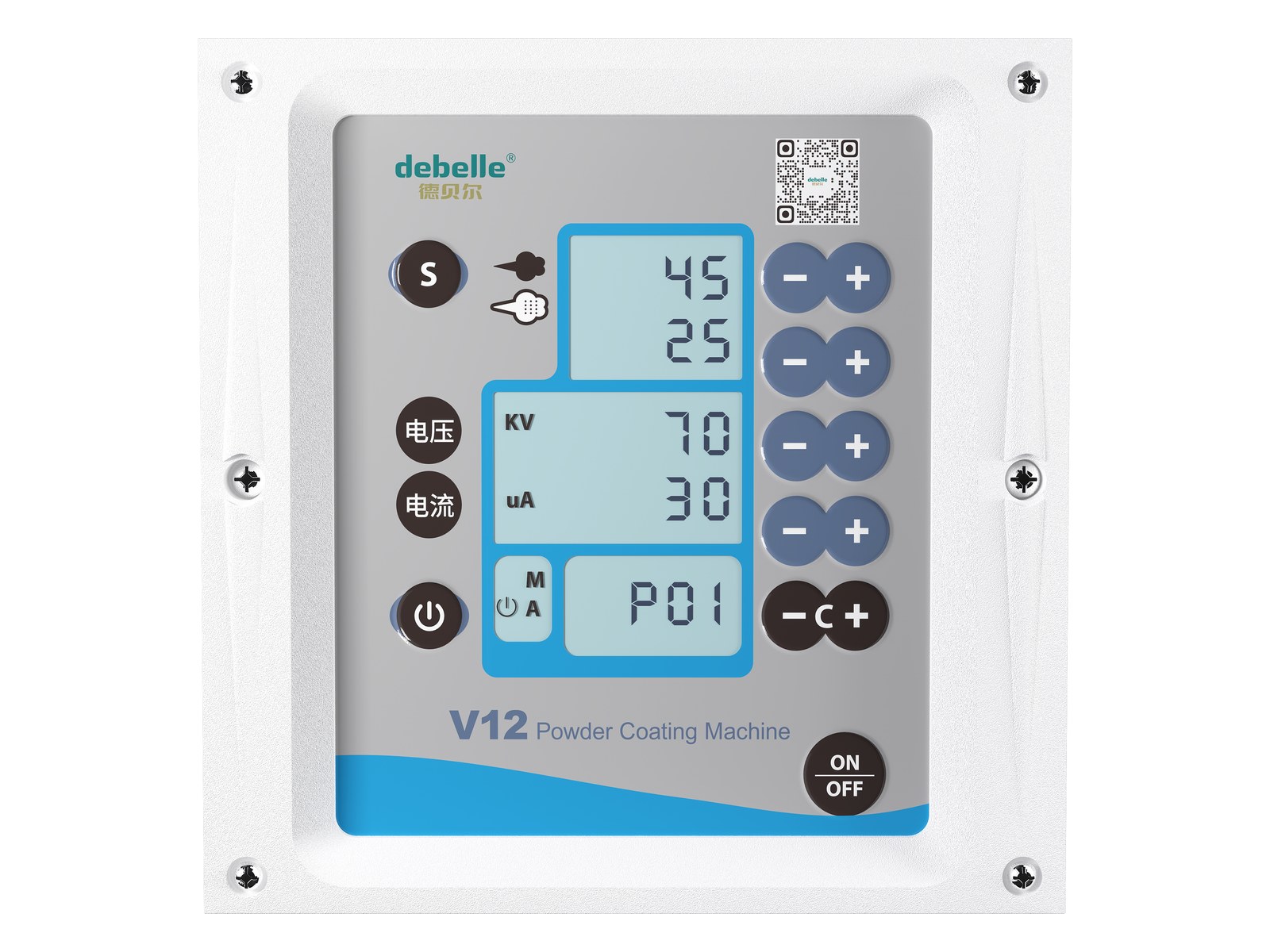

| Display | LCD display |
| Interlock capability | One control unit synchronizes multiple guns |
| Mounting | Reciprocator / fixed bracket |
Typical Applications
Multi-gun automatic lines in large powder booths; continuous chain production lines that demand minimal downtime; automatic coating shops with frequent color changes.
FAQ
Q: Does a failed control unit really not stop production? With the V12’s cross-backup design, any control unit can take over the gun group of a failed unit without stopping the chain during switchover. This is the core value of the V12 automatic solution over basic models.
Q: Do 20+ guns in a group each need individual parameter setting? No. With one-touch interlock, each group only requires setting one gun — the rest sync automatically. Twenty gun sets in two groups need only two settings.
Want to Confirm This Model Fits Your Workpieces?
Provide workpiece dimensions, material and daily output — we deliver selection advice and a configuration list. Sample spray testing available.
