E7 Automatic Electrostatic Powder Coating Gun E7
Automatic version sharing the same control unit as the E7 manual gun, ideal for conveyor-line batch coating with a reciprocator. Control unit is reusable, keeping upgrade costs low.
1 / 9Technical Specifications
| Model | E7 |
|---|---|
| Type | Automatic |
| Category | Electrostatic Powder Coating Gun |
| Input Voltage | AC 220V 50Hz / 0-85kV output |
| Power | 50W |
| Hopper | Powder feed system configured to line requirements |
| Suitable Workpieces | Reciprocator/conveyor-line batch coating, flat panels |
| Status | In Production |
Key Features

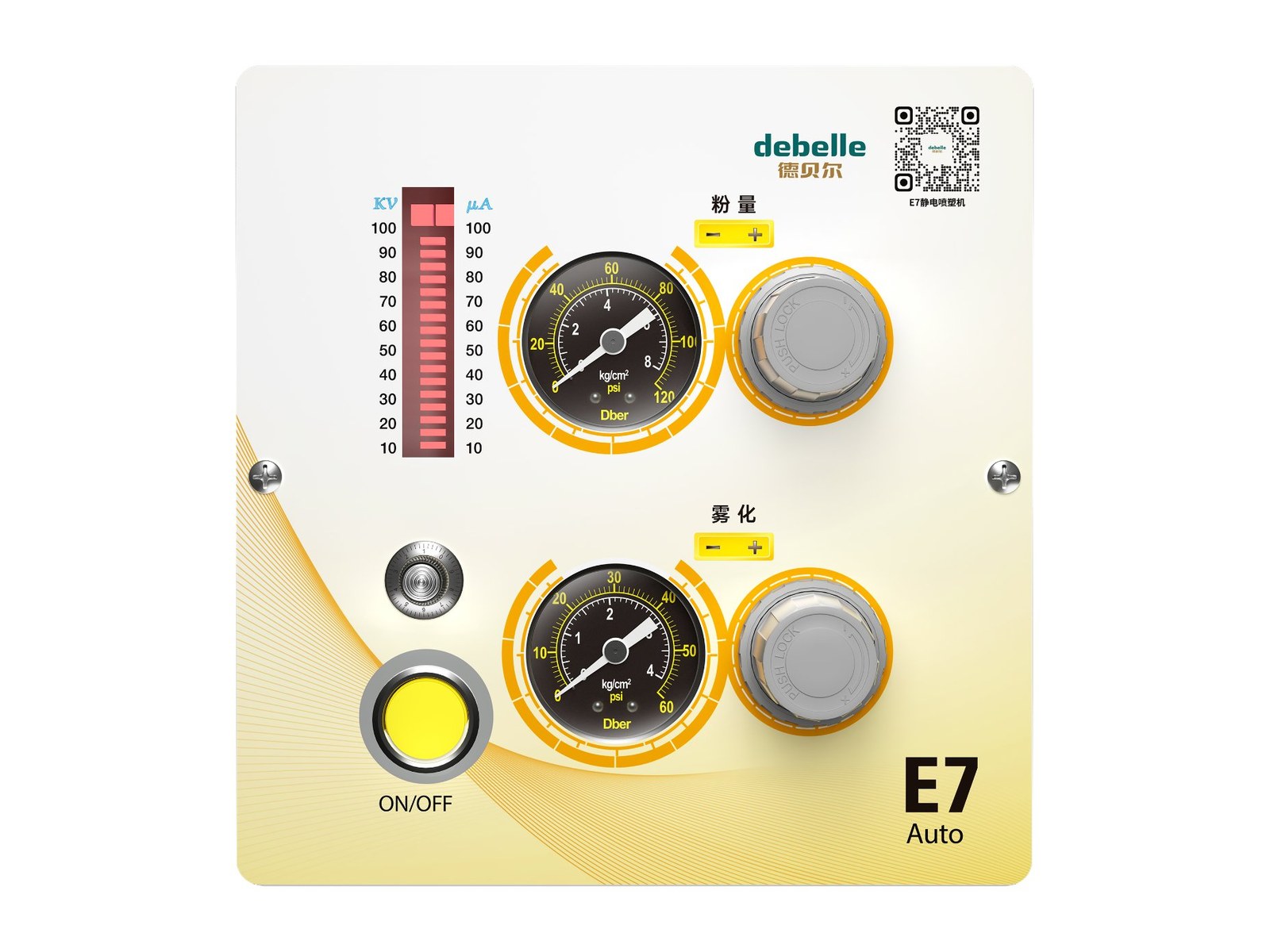

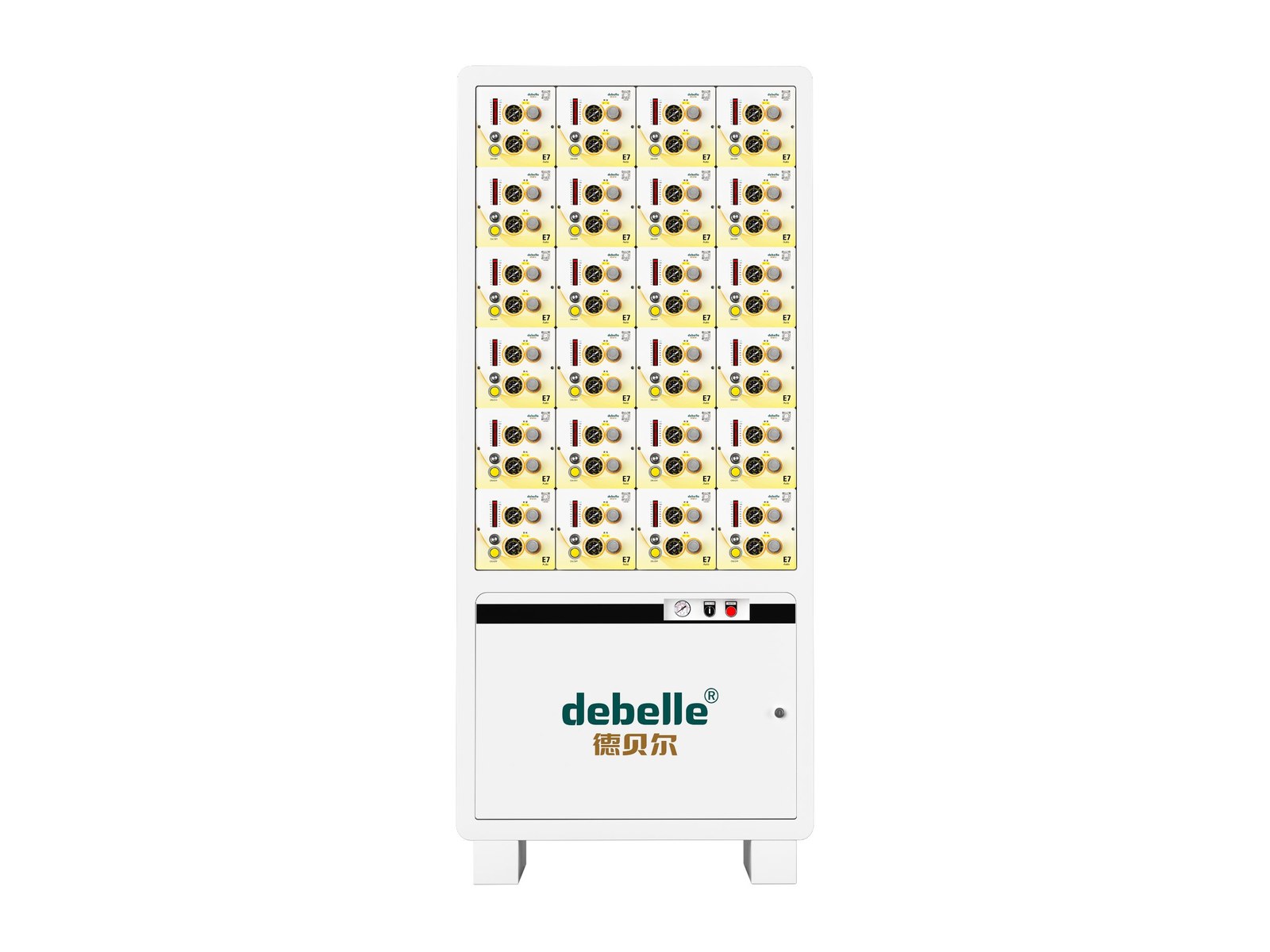

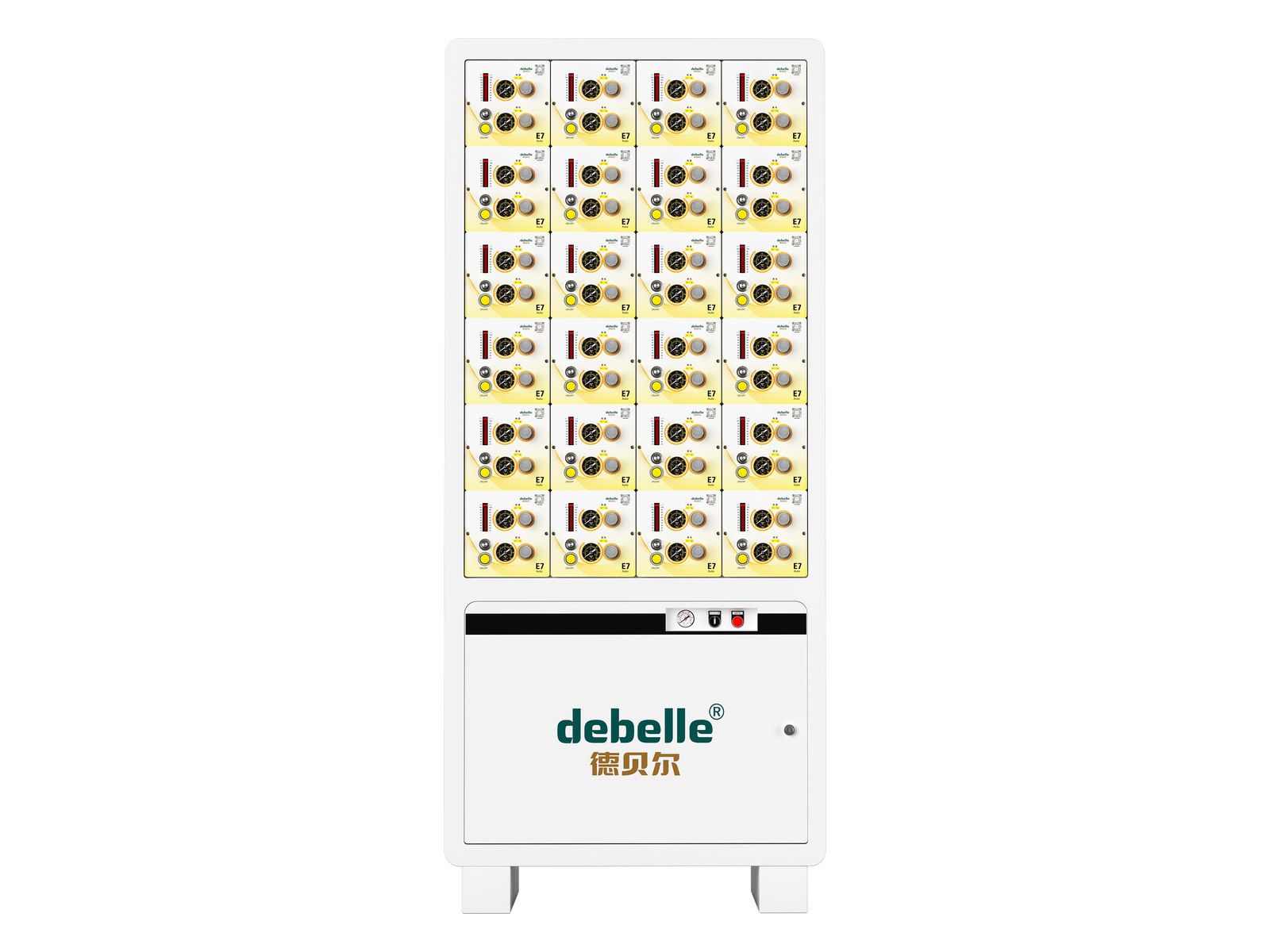

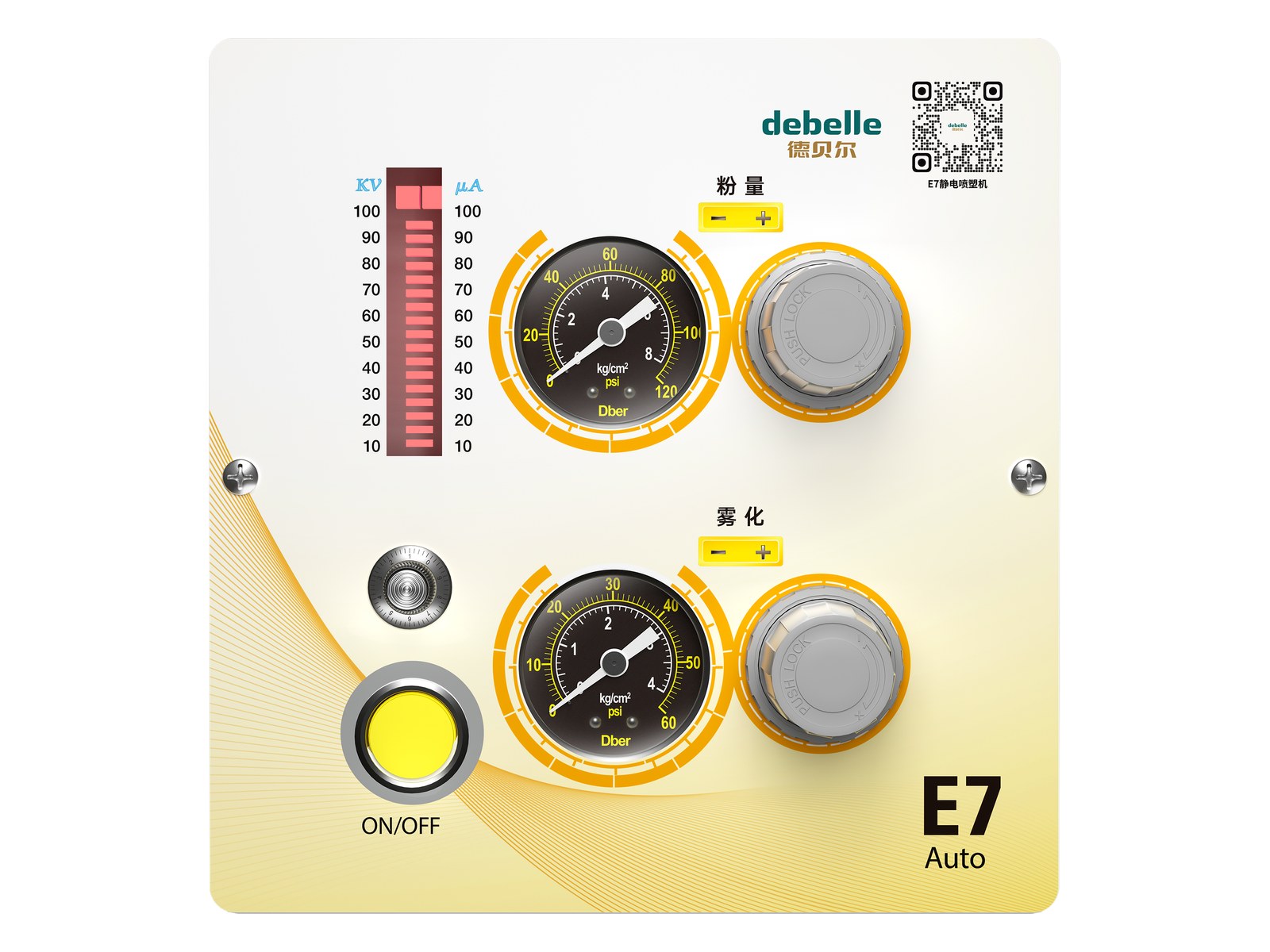

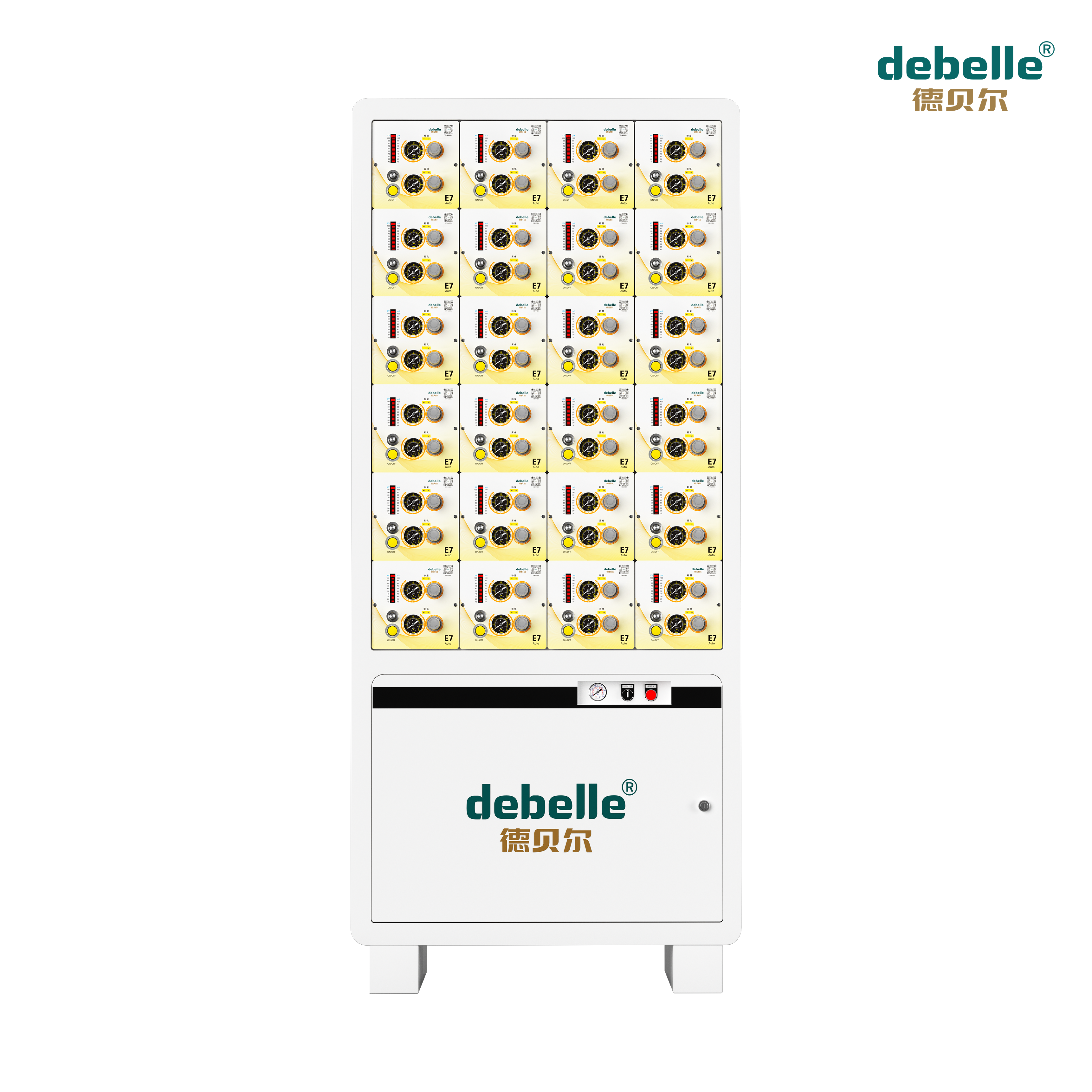

- Control unit shared with the manual gun: If your shop already runs E7 manual guns, the control unit can be reused when upgrading to an automatic line — the lowest-cost upgrade path.

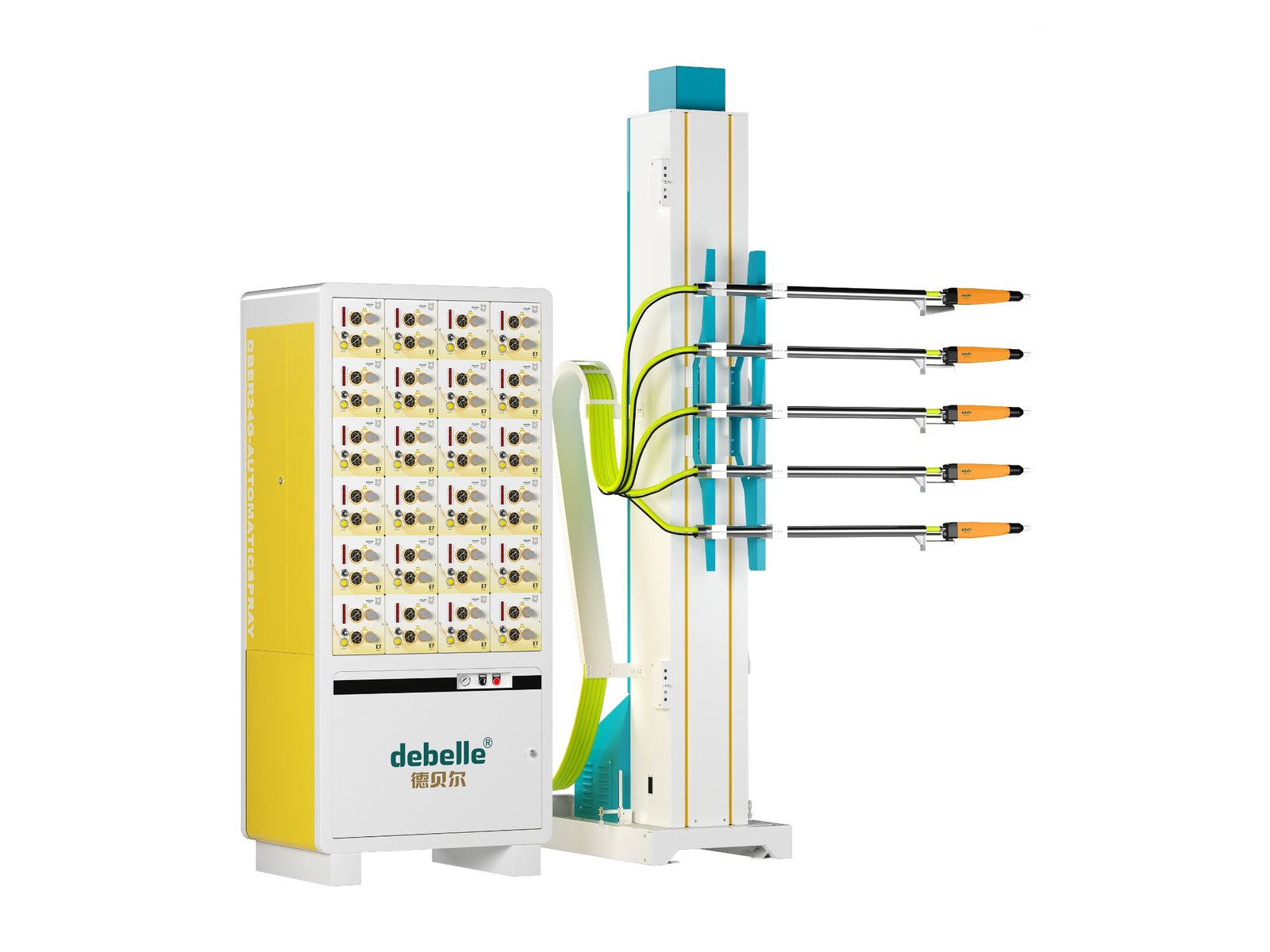

- Reciprocator-ready: Standard mounting interface for automatic reciprocating spraying, eliminating manual gun walking.

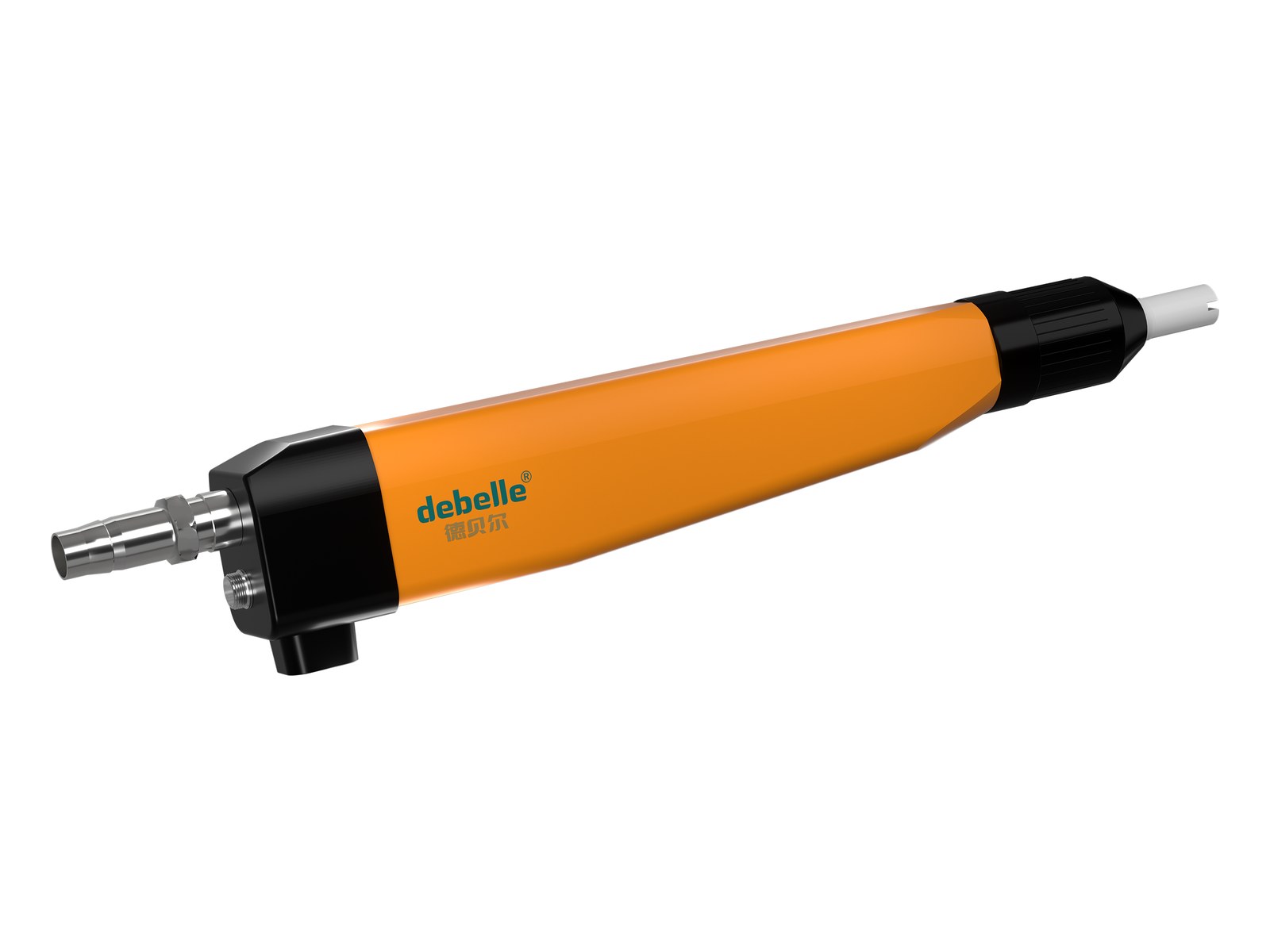

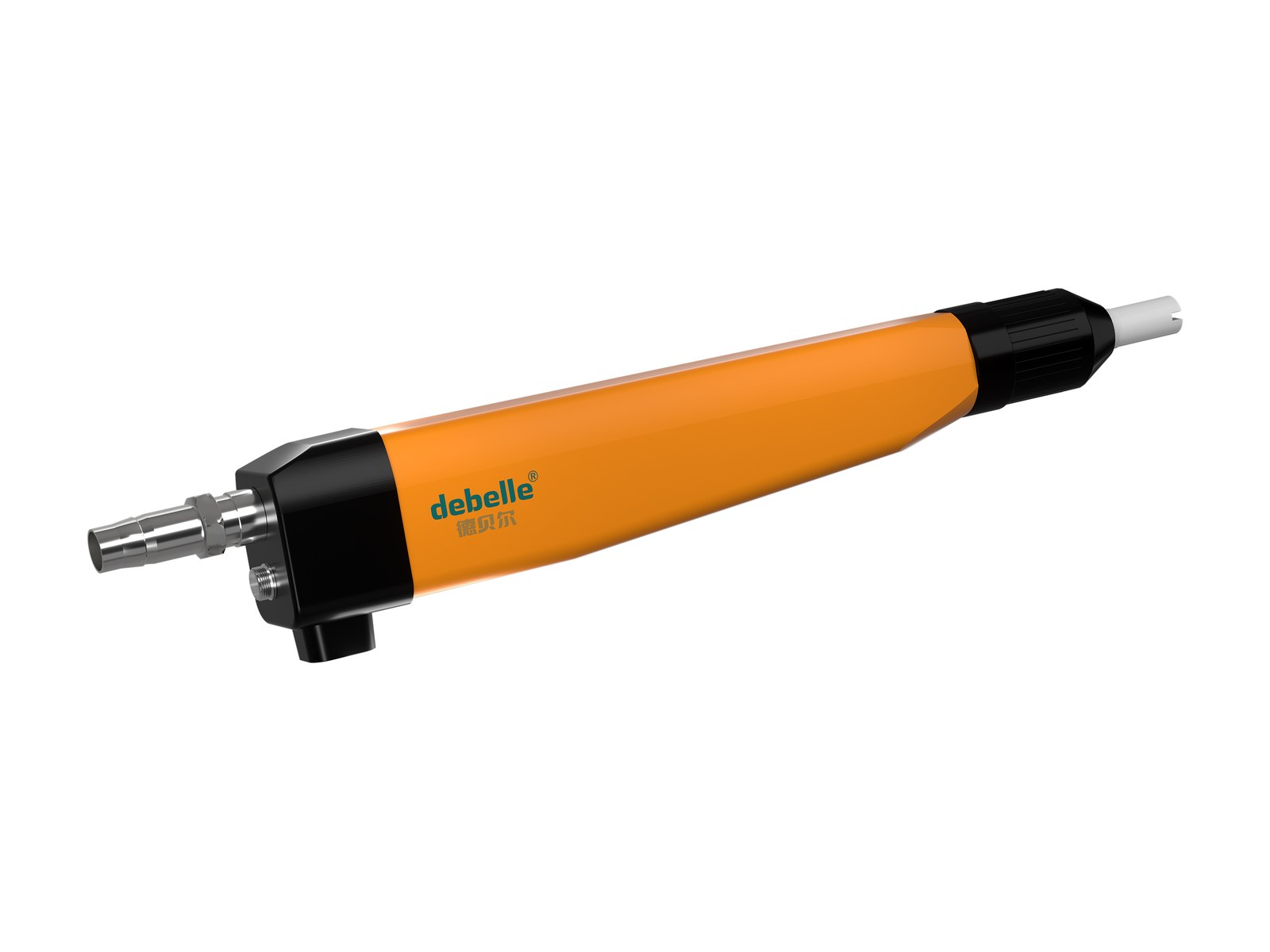

- Built-in high-voltage module: The high-voltage module generates and releases voltage inside the gun body, creating a high-voltage field between the electrode and the workpiece. Multi-stage powder charging improves transfer efficiency.
- Conveyor-line interlocking: Can be linked with chain start/stop to turn powder flow on and off, reducing overspray waste and standby labor.
Specifications
| Item | Parameter |
|---|---|
| Input voltage | AC 220V 50Hz |
| Output voltage | 0–85kV |
| Output current | 0–100μA adjustable |
| Output power | 50W |
| Air consumption | ≤0.3m³/min |
| Powder output | 0–500g/min |
| Nozzle options | Round, flat, extension wand |
| Mounting | Reciprocator / fixed bracket |
Typical Applications
Batch coating on conveyor lines with reciprocators; a transitional solution for shops upgrading from manual to automatic lines; continuous production of regularly arranged workpieces such as flat panels and profiles.
FAQ
Q: How many E7 automatic guns can one reciprocator carry? Gun count is configured based on workpiece height and chain speed — typically 2–6 guns per reciprocator. Send us your workpiece dimensions and chain speed, and we will provide a gun layout plan.
Q: If one automatic gun fails, does the whole line stop? A single-gun failure can be covered by switching to manual touch-up spraying. For high output or complex workpieces, we recommend CNC models (V12/T30 series) with interlock control and backup control unit options.
Want to Confirm This Model Fits Your Workpieces?
Provide workpiece dimensions, material and daily output — we deliver selection advice and a configuration list. Sample spray testing available.
