T30-L Automatic Electrostatic Powder Coating Gun T30-L
The main automatic gun for vertical lines, adding three data packages on top of the CNC platform, and combinable with a powder feed center into a complete automatic coating solution.
1 / 6Technical Specifications
| Model | T30-L |
|---|---|
| Type | Automatic |
| Category | Electrostatic Powder Coating Gun |
| Input Voltage | AC 220V 50Hz / 0-100kV output |
| Power | 35W |
| Hopper | Powder feed center available |
| Suitable Workpieces | Vertical/automatic lines, batch coating of long workpieces such as aluminum profiles |
| Status | In Production |
Key Features

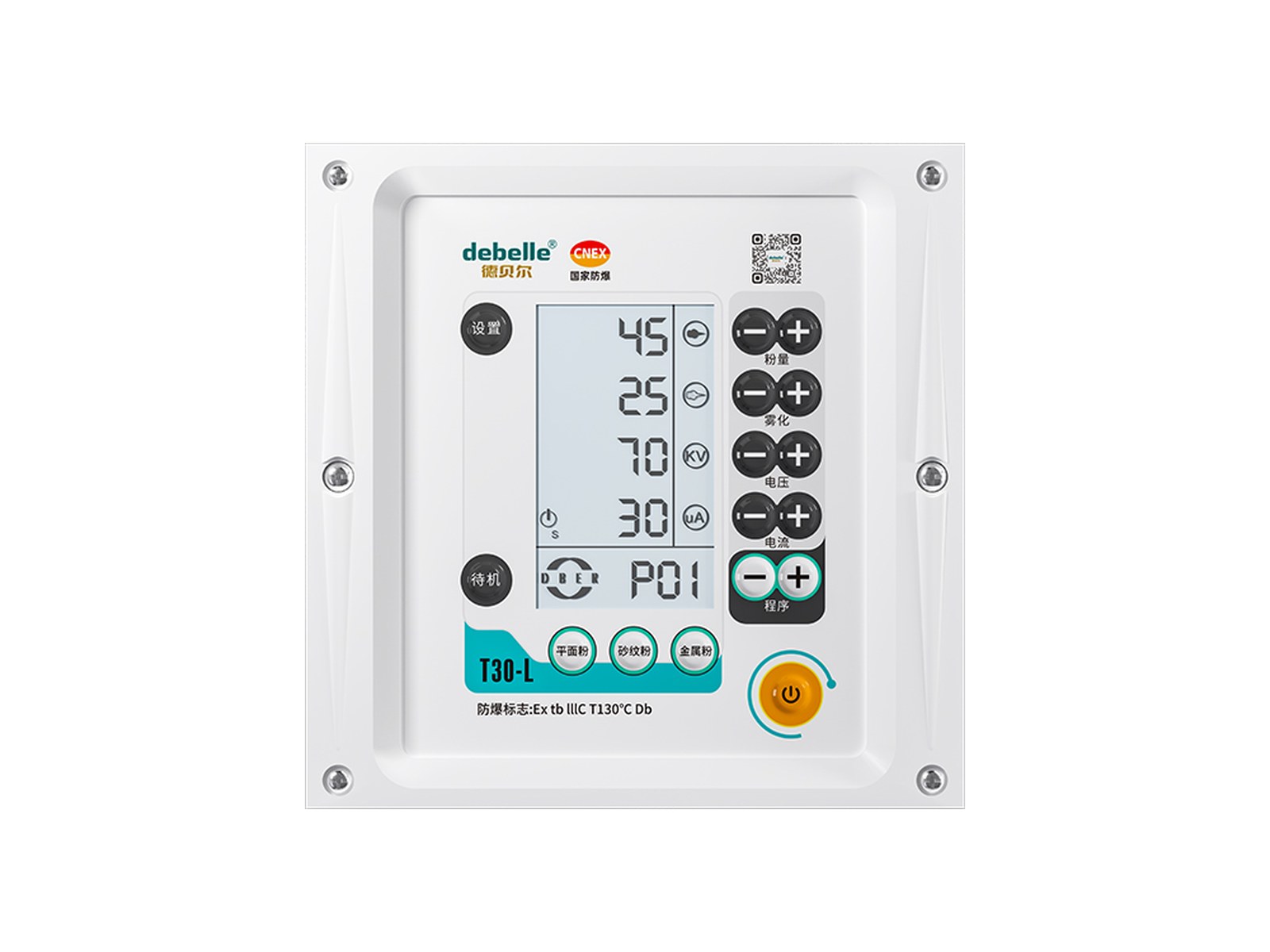

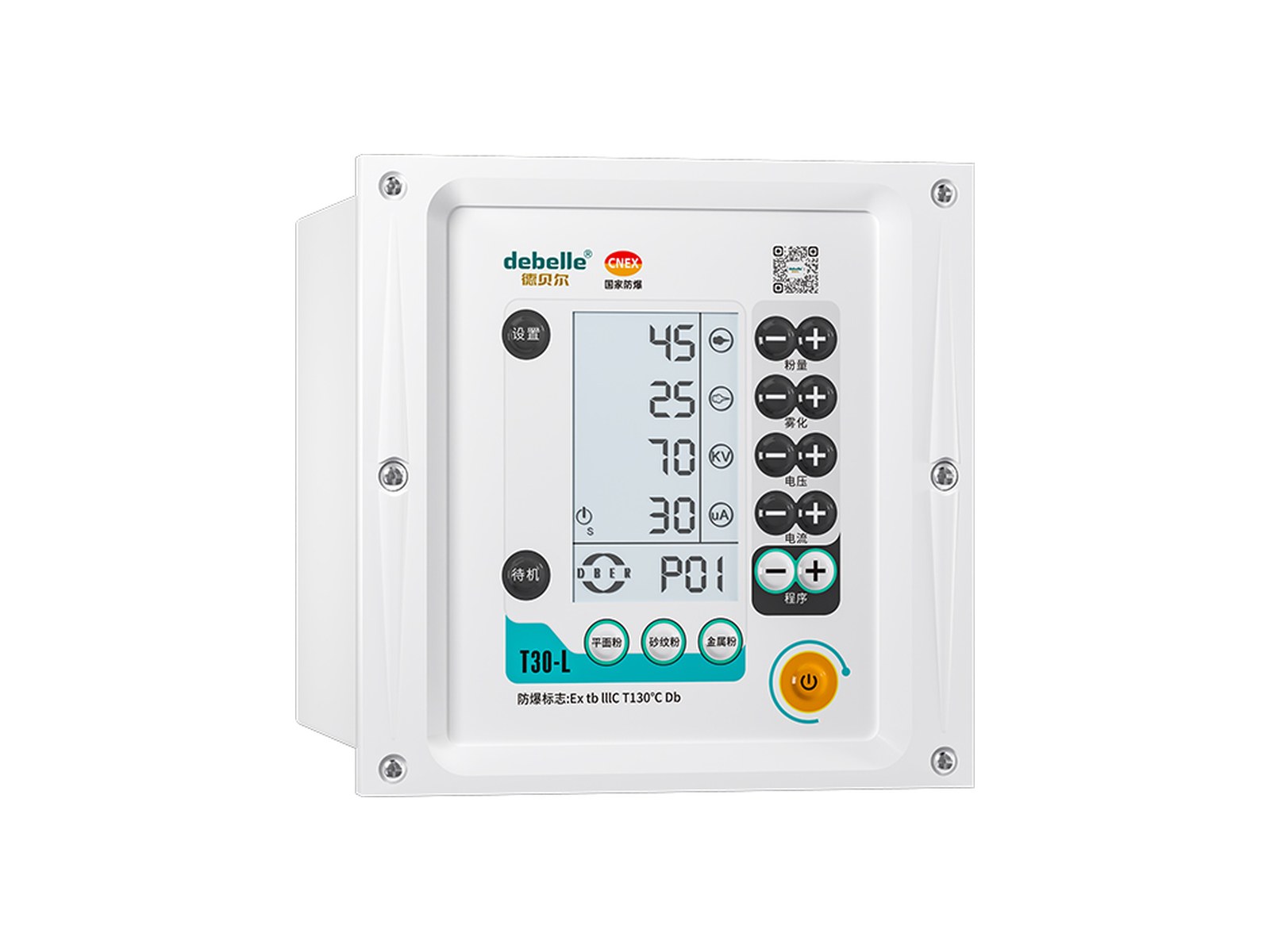

- Data packages included: Three data packages — texture powder, flat powder, and metallic powder — added on top of the CNC automatic gun, with one-touch switching when changing powders.

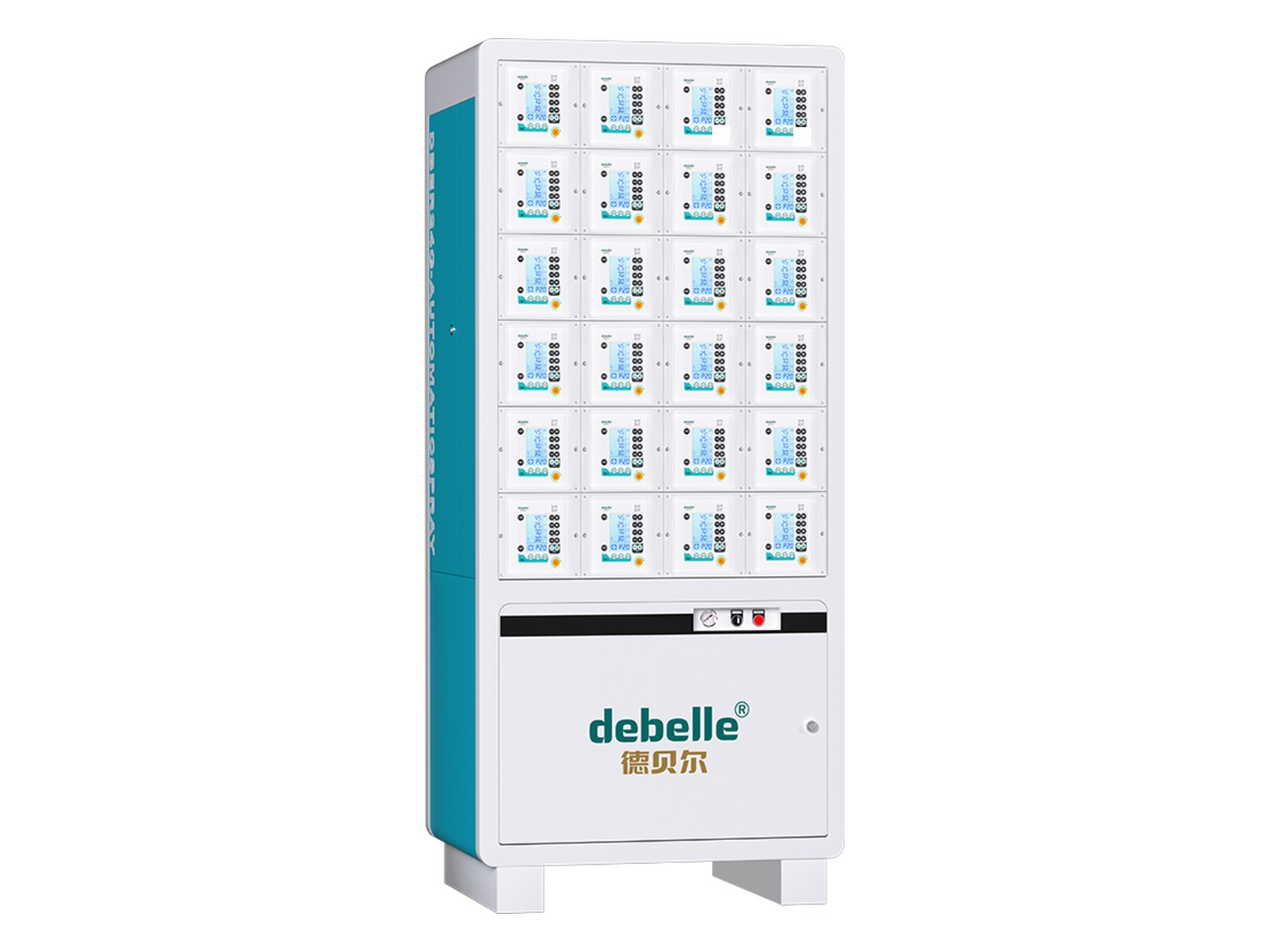

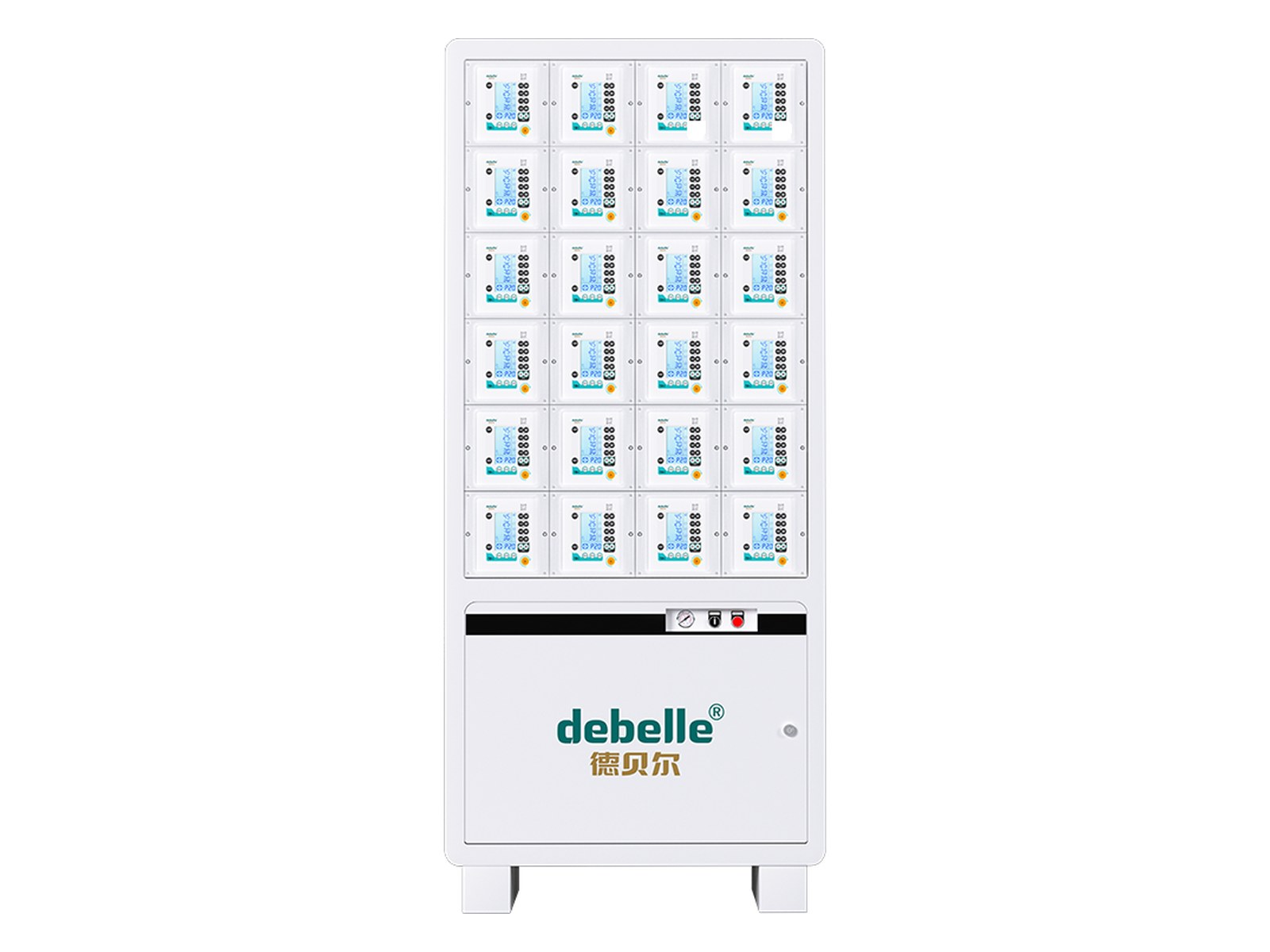

- Powder feed center combination: Can be combined with a powder feed center into a complete automatic coating system with unified multi-gun powder supply, suited to vertical lines.
- Proven on vertical lines: Applied in volume on aluminum industry vertical lines and similar projects, with mature experience in automatic coating of long parts and large flat surfaces.
- 0-100kV output: High output ceiling keeps charging stable on profile edges and grooves.
Specifications
| Item | Parameter |
|---|---|
| Input voltage | AC 220V 50Hz |
| Output voltage | 0–100kV |
| Output current | 0–100μA adjustable |
| Output power | 35W |
| Air consumption | ≤0.3m³/min |
| Powder output | 0–450g/min |
| High-voltage frequency | 29KHz |
| Data packages | Texture powder / flat powder / metallic powder |
| Powder feed | Hopper / powder feed center (per solution) |

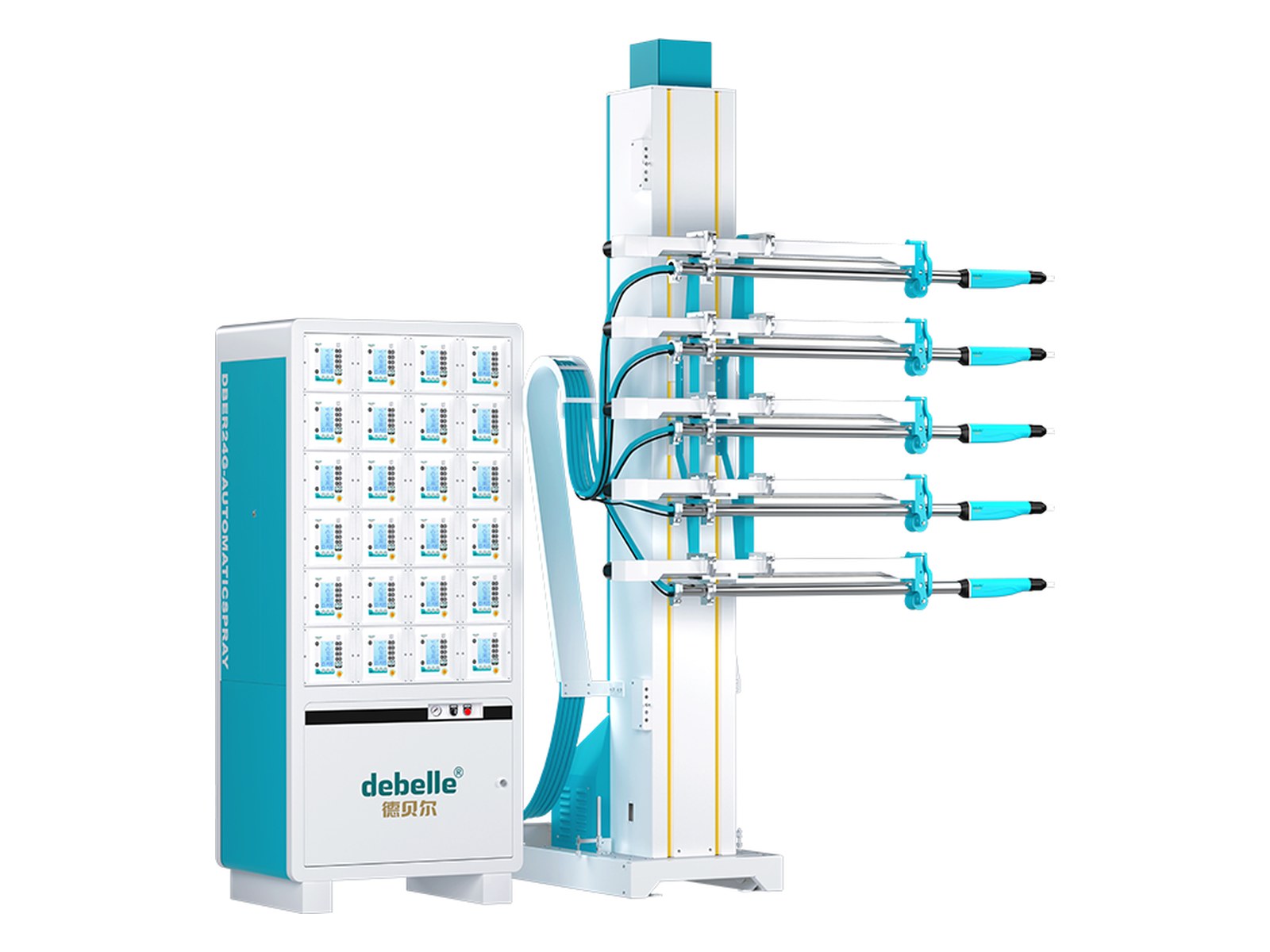

| Mounting | Reciprocator / vertical line fixed bracket |
Typical Applications
Aluminum profile vertical lines and automatic batch coating of long, large-flat workpieces; multi-gun lines needing unified powder supply from a powder feed center; upgrade projects converting horizontal lines to vertical.
FAQ
Q: Is the powder feed center mandatory? No. With few guns and single-color production, hoppers are sufficient. For multi-gun, multi-color, high-capacity vertical lines, we recommend a powder feed center — color change and powder supply efficiency are much higher.
Q: Is installation and commissioning included? The full line solution includes on-site installation, production ramp-up support, and operator training; the exact scope is as specified in the contract.
Want to Confirm This Model Fits Your Workpieces?
Provide workpiece dimensions, material and daily output — we deliver selection advice and a configuration list. Sample spray testing available.
