Recommended high-efficiency, energy-saving model: upgraded screen + beginner data packages (flat/texture/metallic powder one-touch spraying) + tri-proof high-voltage module + lightweight 380g gun body.

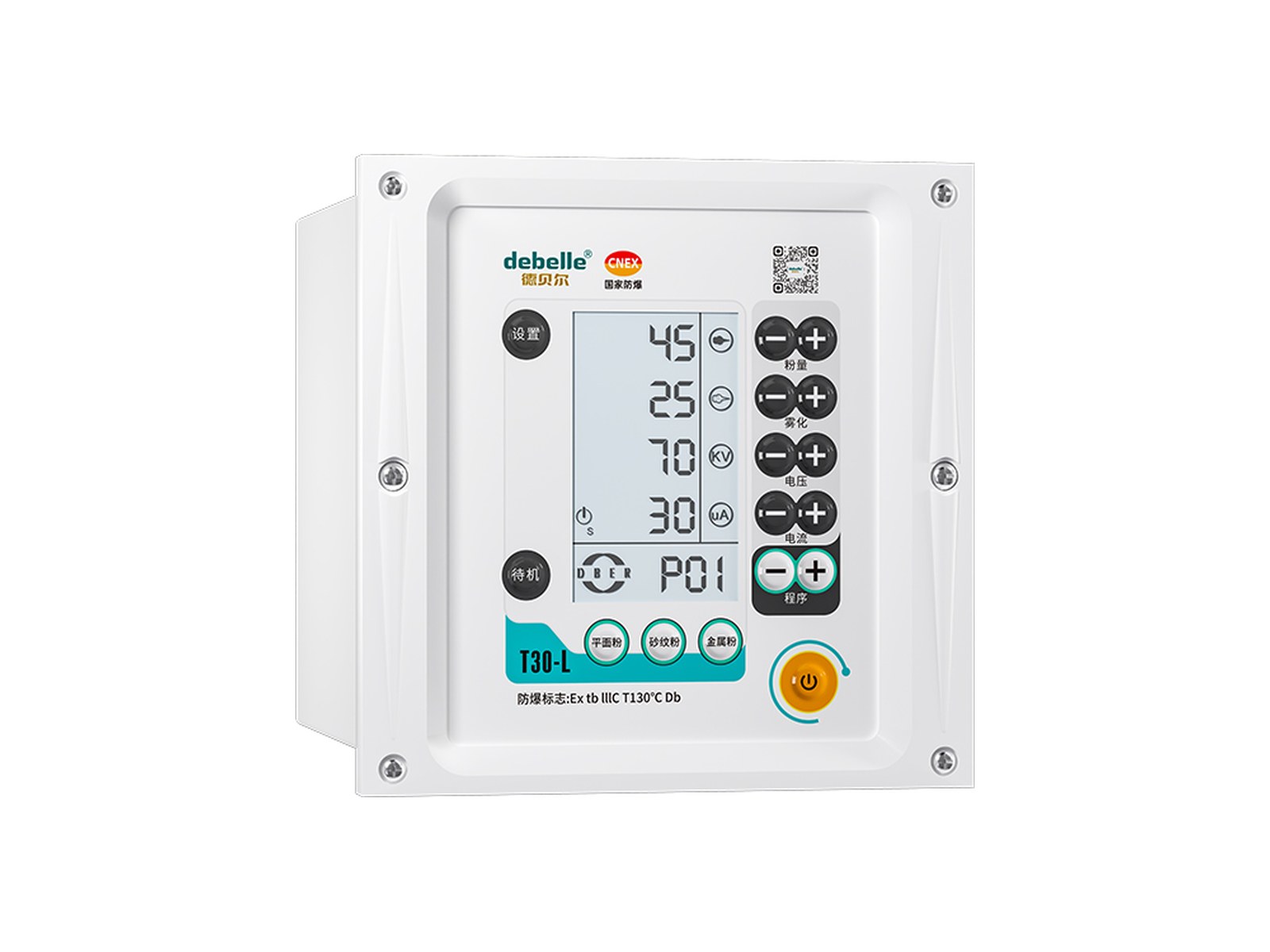

1 / 2| Model | T30-L |
|---|---|
| Type | Manual |
| Category | Electrostatic Powder Coating Gun |
| Input Voltage | AC 220V 50Hz / adjustable 0-100kV output |
| Power | 35W |
| Hopper | Fluidized powder hopper included as standard |
| Suitable Workpieces | Shops needing efficiency and energy savings, teams new to coating |
| Status | In Production |
| Item | Parameter |
|---|---|
| Input voltage | AC 220V 50Hz |
| Input air pressure | 6kg |
| Output voltage | 0–100kV continuously adjustable |
| Output current | 0–100μA adjustable |
| Output power | 35W |
| Air consumption | ≤0.3m³/min |
| Powder output | 0–450g/min |
| High-voltage frequency | 29KHz |
| Powder adjustment | Electronic precision flow valve |
| Display | LCD (upgraded panel) |
| Smart data packages | Flat powder / texture powder / metallic powder / custom |
| Gun body weight | Approx. 380g |
| Operating temperature | -30℃ ~ 60℃ |
| Nozzle options | Round, flat, extension wand |
Teams with limited spraying experience and hiring difficulties (data packages reduce reliance on operator feel); shops focused on energy savings and equipment lifespan; environments with large temperature swings or humidity.
Q: What problem do the “beginner data packages” actually solve? Traditional models require re-tuning parameters when switching powder types, relying on experienced operators. The T30-L activates the matching data package with one touch, so new operators can achieve acceptable results immediately — greatly reducing training costs.
Q: How does the T30-L relate to the T30? The T30-L is the upgraded T30: optimized screen and panel, and upgraded gun body materials and temperature range. Functionally it keeps the same programmable operation, one-touch gun purge, self-diagnosis, and data packages.
Q: Is there a T30-L automatic version? Yes. The T30-L automatic gun can be combined with a powder feed center into vertical/automatic line solutions — see the T30-L automatic product page.
Provide workpiece dimensions, material and daily output — we deliver selection advice and a configuration list. Sample spray testing available.
