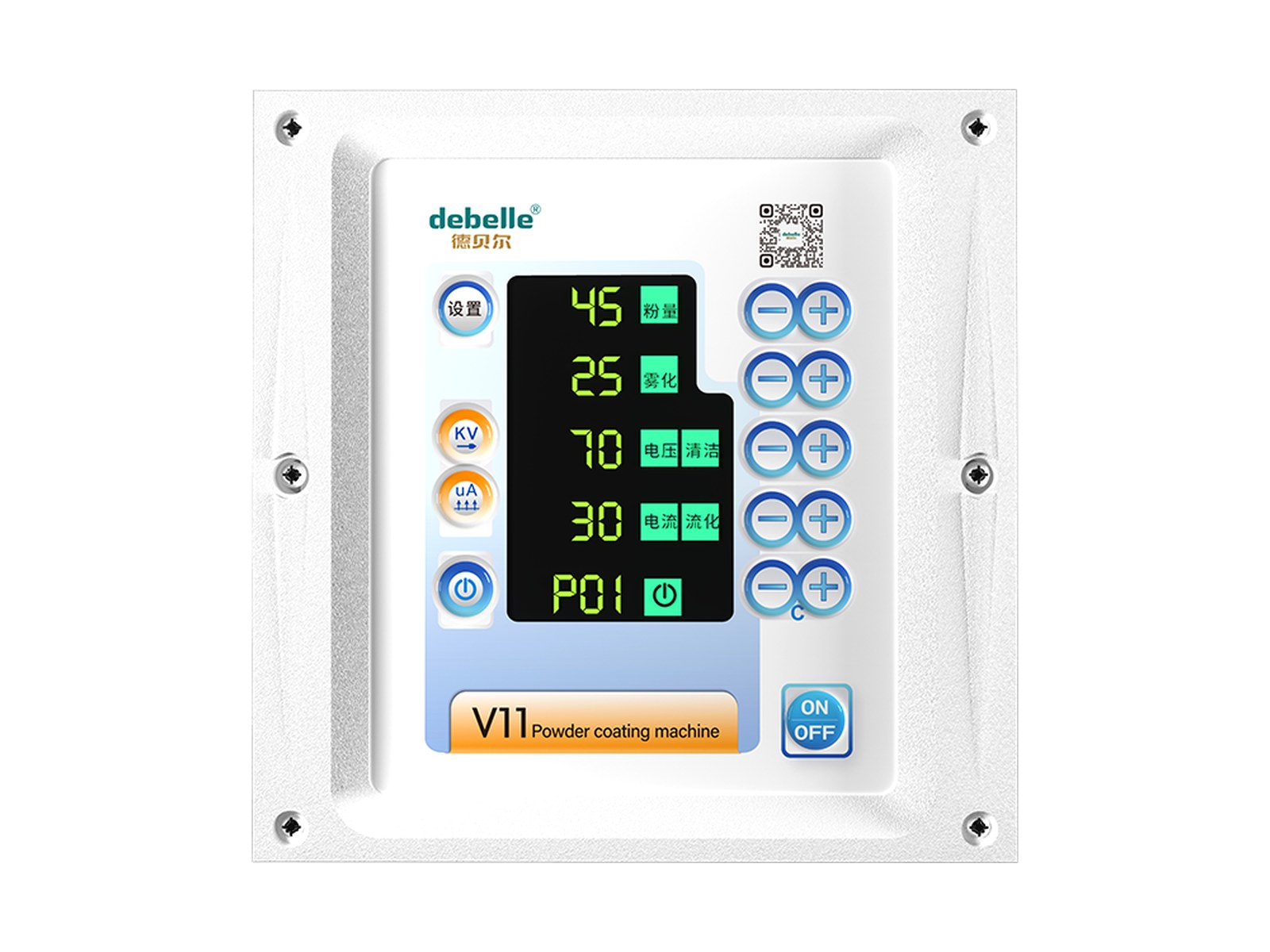

Entry-level CNC gun with 0-95kV digital display, 29KHz high frequency, programmable process parameter storage, and one-touch gun purge for fast color changes.
1 / 2| Model | V11 |
|---|---|
| Type | Manual |
| Category | Electrostatic Powder Coating Gun |
| Input Voltage | AC 220V 50Hz / adjustable 0-95kV output |
| Power | 35W |
| Hopper | Fluidized powder hopper included as standard |
| Suitable Workpieces | Wide variety of workpieces, shops needing parameter management |
| Status | In Production |
| Item | Parameter |
|---|---|
| Input voltage | AC 220V 50Hz |
| Input air pressure | 6kg |
| Output voltage | 0–95kV continuously adjustable |
| Output current | 0–100μA adjustable |
| Output power | 35W |
| Air consumption | ≤0.3m³/min |
| Powder output | 0–450g/min |
| High-voltage frequency | 29KHz |
| Powder adjustment | Electronic precision flow valve |
| Display | Digital display |
| Communication | Modbus |
| Nozzle options | Round, flat, extension wand |
| Operating temperature | -20℃ ~ 50℃ |
Shops with many workpiece types that need per-workpiece spraying parameters; the first step up from regulator-valve models to CNC; multi-color orders with color-change frequency requirements.
Q: How do I choose between the V11 and the V12? The V11 offers digital display and 0-95kV, covering most CNC needs. The V12 offers LCD display, 0-100kV, larger program capacity, and fuller functionality. Choose the V12 for highly complex workpieces.
Q: How much does program storage help in actual production? It helps significantly. Once parameters are fixed, new operators just load the program and spray — quality consistency no longer depends on individual feel, and rework rates drop noticeably.
Provide workpiece dimensions, material and daily output — we deliver selection advice and a configuration list. Sample spray testing available.
