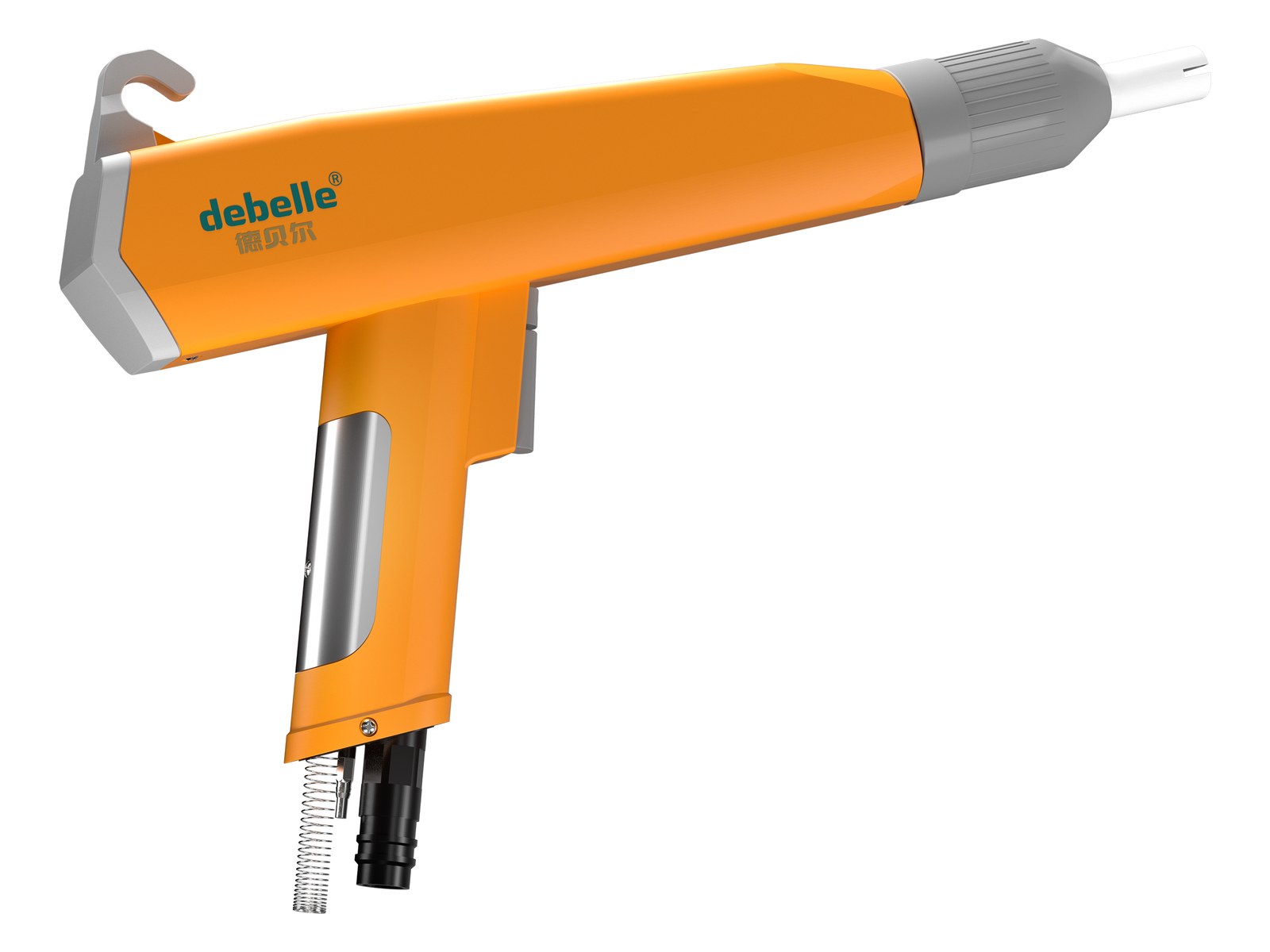

DEBELLE's classic entry-level manual electrostatic powder coating gun with adjustable 0-85kV output and automatic voltage tracking by gun distance. A cost-effective choice for flat panels and small-to-medium batches.
1 / 5| Model | E7 |
|---|---|
| Type | Manual |
| Category | Electrostatic Powder Coating Gun |
| Input Voltage | AC 220V 50Hz / adjustable 0-85kV output |
| Power | 50W |

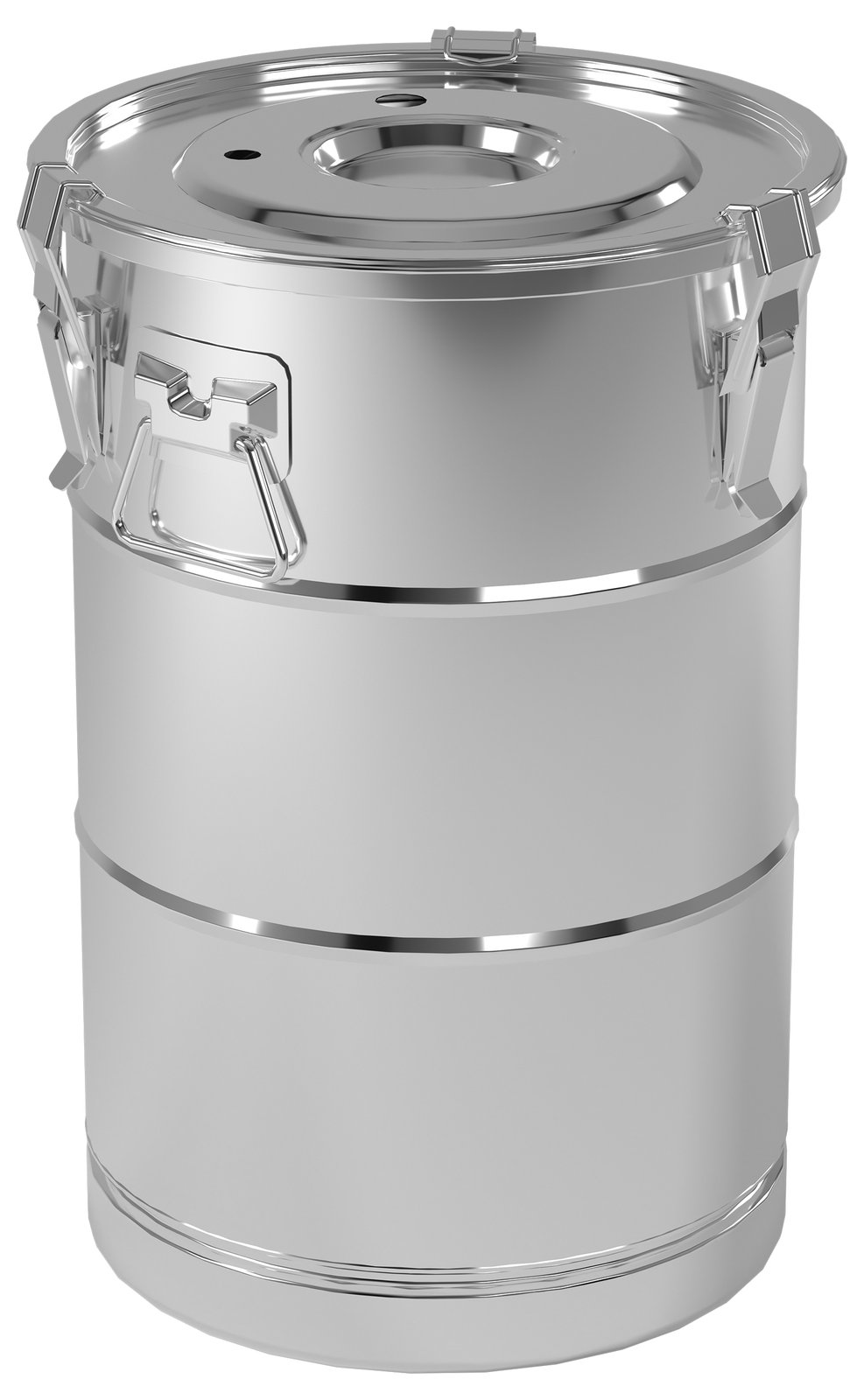

| Hopper | Fluidized powder hopper included as standard |
| Suitable Workpieces | Flat panels, small-to-medium metal parts, small batches in many colors |
| Status | In Production |
| Item | Parameter |
|---|---|
| Input voltage | AC 220V 50Hz |
| Input air pressure | 6kg |
| Output voltage | 0–85kV continuously adjustable |
| Output current | 0–100μA adjustable |
| Output power | 50W |
| Air consumption | ≤0.3m³/min |
| Powder output | 0–500g/min |
| High-voltage frequency | 20KHz |
| Powder adjustment | Pressure regulator valve |

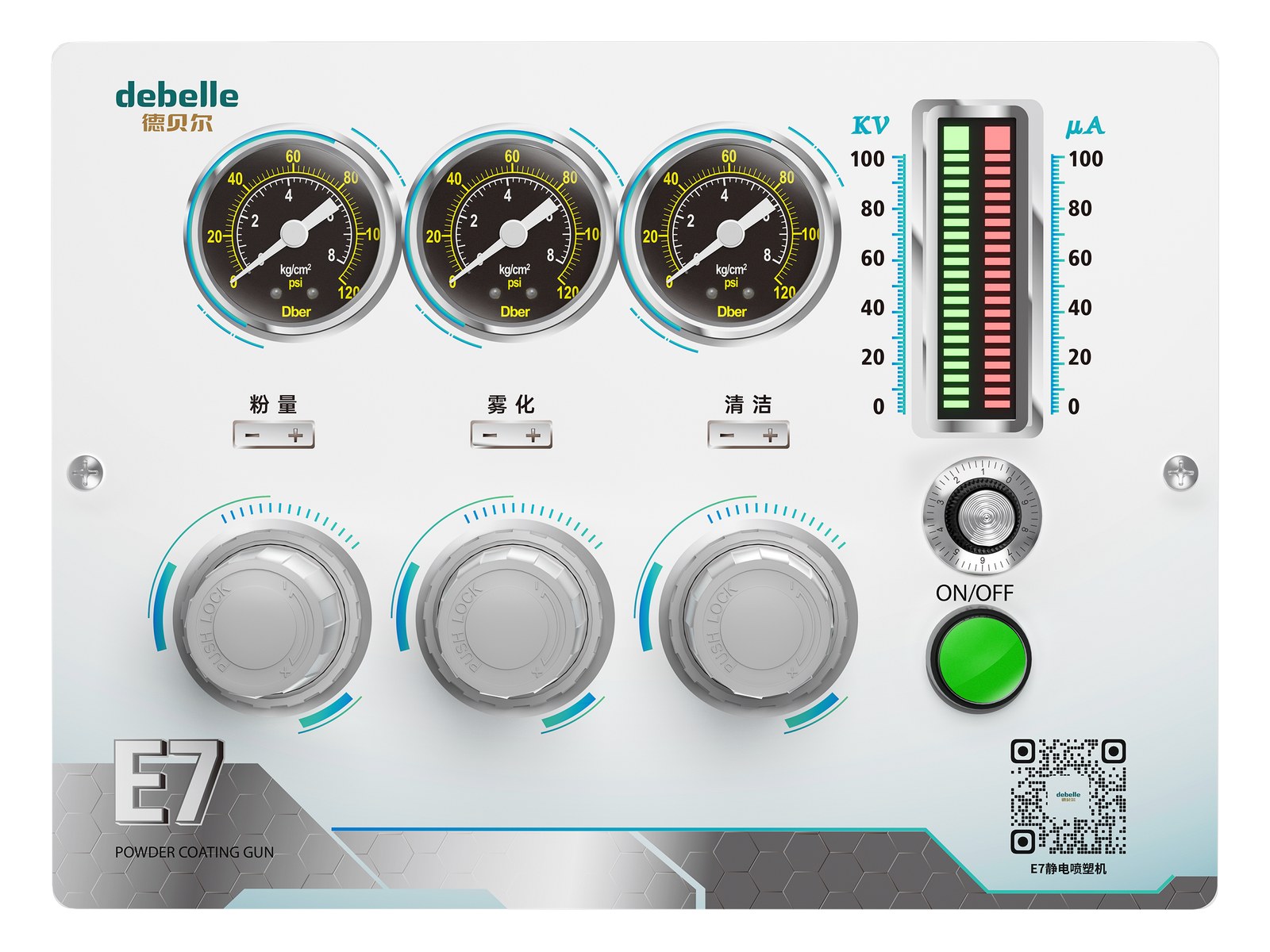

| Display | Pressure gauge + electronic bar display |
| Nozzle options | Round, flat, extension wand |
| Operating temperature | -20℃ ~ 50℃ |
Batch coating of flat panels and small-to-medium metal parts where coating requirements are not demanding; orders with many colors and small quantities per batch; shops adopting electrostatic spraying for the first time on a limited budget.
Q: Can the E7 handle grooved parts or recoating? The E7 is positioned as an entry-level gun. For difficult workpieces such as metallic powders, recoated parts, or parts with deep grooves, we recommend stepping up to a 0-100kV CNC model (such as V12 or T30-L) for better edge coverage and second-pass performance.
Q: If I add an automatic line later, can I keep the E7 control unit? Yes. The E7 manual and automatic guns share the same control unit, so upgrading to an automatic setup only requires adding automatic guns and the control section — reducing duplicate investment.
Q: Can I send samples for test spraying? Yes. Provide workpiece samples and the powder type you use, and we will test-spray on the actual machine and report transfer efficiency data plus configuration recommendations.
Provide workpiece dimensions, material and daily output — we deliver selection advice and a configuration list. Sample spray testing available.
An upgraded alternative to the entry level, with adjustable 0-90kV output and clear improvements on the three common coating challenges: metallic powders, recoated parts, and grooved parts.
Manual gun from the E series, newly released in 2026, with improved overall configuration and spraying stability over the E7.
Entry-level CNC gun with 0-95kV digital display, 29KHz high frequency, programmable process parameter storage, and one-touch gun purge for fast color changes.
The all-round CNC machine, all in one step: 0-100kV with LCD display, 20 main programs + over 500 sub-programs storage, one-touch gun purge — covering all the capabilities of the E7 and 960.
